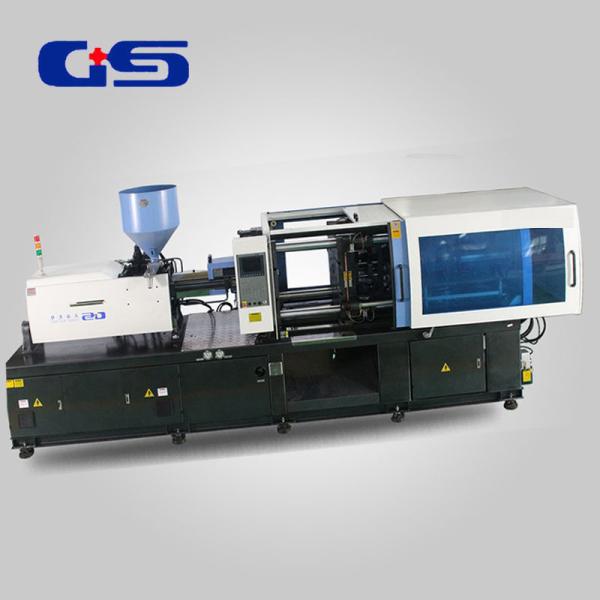

    Large Shot Weight PET Preform Injection Molding Machine Fully Automatic

    Ask Lasest Price
    Brand Name : GS
    Model Number : GS68HS
    Certification : ISO9001
    Price : Negotiable
    • Product Details
    • Company Profile

    Large Shot Weight PET Preform Injection Molding Machine Fully Automatic

    SERVO MOTOR ENERGY SAVING SPECIAL LARGE SHOT WEIGHT PET PREFORM INJECTION MOULDING MACHINE

    Specification:

    Specification

    GS68HS

    A

    B

    C

    INJECTION UNIT

    Screw Diameter

    mm

    26

    30

    34

    Screw L/D Ratio

    L/D

    24.2

    21

    19.5

    Shot Size(Theoretical)

    cm3

    66

    88

    113

    Injection Weight

    g

    60

    80

    103

    Injection Rate

    g/s

    60

    80

    103

    Plasticizing Capacity

    g/s

    6.3

    8.4

    10.3

    Injection Pressure

    Mpa

    236

    177

    138

    Screw Speed

    rpm

    0-260

    CLAMPING UNIT

    Clamp Tonnage

    KN

    600

    Toggle Stroke

    mm

    270

    Space Between Tie Bars

    mm

    310 x 310

    Max.Mould Height

    mm

    330

    Min.Mould Height

    mm

    120

    Ejector Stroke

    mm

    70

    Ejector Tonnage

    KN

    22

    Ejector Number

    piece

    1

    OTHERS

    Max.Pump Pressure

    Mpa

    16

    Pump motor Power

    KW

    7.5

    Heater Power

    KW

    5.1

    Hopper Capacity

    Kg

    25

    Oil Tank Capacity

    L

    180

    Machine Dimension(L*W*H)

    m

    3.77 x 1.11 x 1.76

    Machine Weight

    t

    2.5


    Description of horizontal injection moulding machine:

    This machine is currently the best cost-effective injection molding machinery, can be used for a variety of thermoplastic plastic (nylon, ABS, 372, polypropylene, polystyrene) processing, widely used in automotive, instrumentation, electronics, telecommunications, toys, daily necessities and other parts injection molding.


    Characteristics:

    This series of machine design reference to the advantages of domestic and international famous brands of advanced models, with excellent material, advanced structure, beautiful appearance, simple operation, convenient adjustment, easy to repair, with electrical control and reliable, advanced hydraulic component characteristics of durable, stable operation, reliable machine.


    1. The operation method contain manual, semi-automatic, fully automatic and so on.

    2. The safety door electrical, mechanical protection device, to ensure safety in production.

    3. The injection screw and heating cylinder are made of high quality nitride steel, it has wear resistance, corrosion resistance.

    4. Oil motor automatic gear die adjustment, five-star hydraulic motor directly driving screw plasticizing, and variable, plasticizing properties.

    5. Five fulcrum inclined double toggle clamping hydraulic machinery, motion characteristics, high speed and energy saving.

    6. High performance hydraulic valve, 24V DC control.
